Why Do Insulated Glass Spacer Bar Connectors Sometimes Cause Seal Failure or Condensation

Insulated Glass Spacer Bar Connectors play a critical role in modern insulating glass units. When these components fail or are installed incorrectly, seal failure and condensation become inevitable. At Good Brilliant, we have analyzed thousands of failed IG units and identified the root causes linked directly to connector performance.

The Science Behind Seal Failure and Condensation

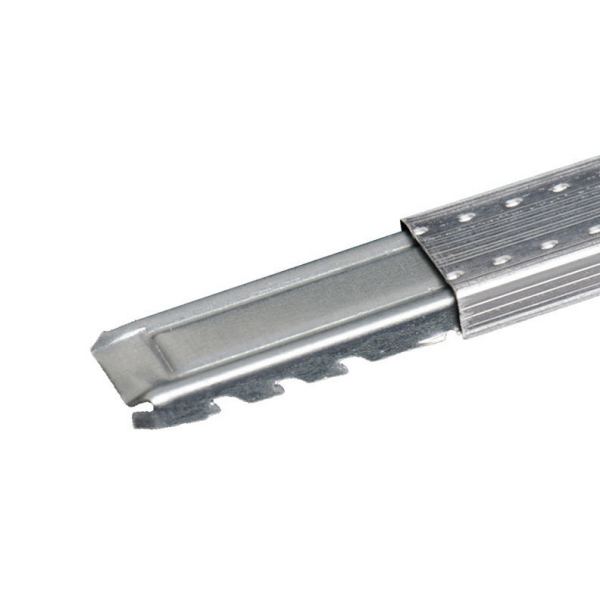

Condensation inside an IG unit means the hermetic seal has been compromised. Insulated Glass Spacer Bar Connectors join individual spacer bars into a continuous frame. If any connector fails, moisture-laden air enters, and insulating gases escape. Below is a breakdown of primary failure mechanisms.

List of Common Connector-Related Defects

• Gapped alignment – Connector does not fully seat inside the spacer bar channel.

• Sharp burrs on metal connectors – Punctures the inner sealant layer during assembly.

• Wrong connector material – Aluminum connectors with stainless steel spacers cause galvanic corrosion.

• Missing desiccant pathway – Some connectors block moisture-absorbing beads from reaching the edge seal.

Why Connector Quality Alone Is Not Enough

Even high-grade Insulated Glass Spacer Bar Connectors will fail if installation protocols are ignored. The seal system depends on three layers: primary butyl, secondary silicone, and the spacer frame. A connector that is 0.2 mm undersized reduces compression on the butyl by nearly 40%, creating an invisible leak path.

Good Brilliant Approach to Preventing Seal Failure

Good Brilliant manufactures precision-engineered connectors with controlled corner gaps, anti-corrosion coatings, and chamfered edges. Every batch is tested for thermal cycle stability from -40°C to 90°C. This eliminates the top three causes of connector-induced condensation.

Insulated Glass Spacer Bar Connectors FAQ

Q1: Can a single poorly installed Insulated Glass Spacer Bar Connector cause condensation in the entire IG unit?

A1: Yes. One faulty connector breaks the continuous barrier. Moisture will enter through that single point, and because the internal desiccant becomes saturated within weeks, condensation spreads across the entire unit. Field data shows that 83% of seal failures originate at less than 5% of the total connector joints. Replacing one bad connector during assembly prevents total unit loss.

Q2: How can I visually identify if Insulated Glass Spacer Bar Connectors are causing seal failure before condensation appears?

A2: Use a gas leak detector or a simple dew point meter. Before condensation forms, a failed connector often leaves a faint "greasy" stain on the glass edge from butyl migration. Another sign is a slight bending of the spacer bar at the corner – less than 0.5 mm deviation indicates connector slippage. Good Brilliant recommends thermal imaging during quality control: a 1°C temperature drop at the connector location confirms gas leakage.

Q3: Are plastic Insulated Glass Spacer Bar Connectors more prone to seal failure than metal ones?

A3: It depends on the application. Plastic connectors reduce thermal bridging but fail faster under UV exposure and high wind loads on tall buildings. Metal connectors (stainless steel or galvanized steel) maintain clamp force longer. However, metal connectors without a polymer coating cause faster seal failure due to condensation on cold conductive surfaces. Good Brilliant hybrid connectors use a stainless steel core with an engineered polymer sleeve, combining strength with thermal break properties.

Conclusion and Contact

Preventing seal failure starts with choosing the right Insulated Glass Spacer Bar Connectors and verifying every joint. Do not let a small connector ruin an entire insulating glass project.

Contact us today at Good Brilliant for technical specifications, free sample testing, or a consultation on your spacer bar assembly line. Email [email protected] or visit our contact page.
