What Makes Screw Second Punch the Core of Precision Fastener Manufacturing?

In the highly competitive world of fastener manufacturing, precision, efficiency, and durability define the quality of every screw produced. One of the most critical yet often overlooked components in this process is the Screw Second Punch—a specialized tool that plays a pivotal role in the screw-forming stage.

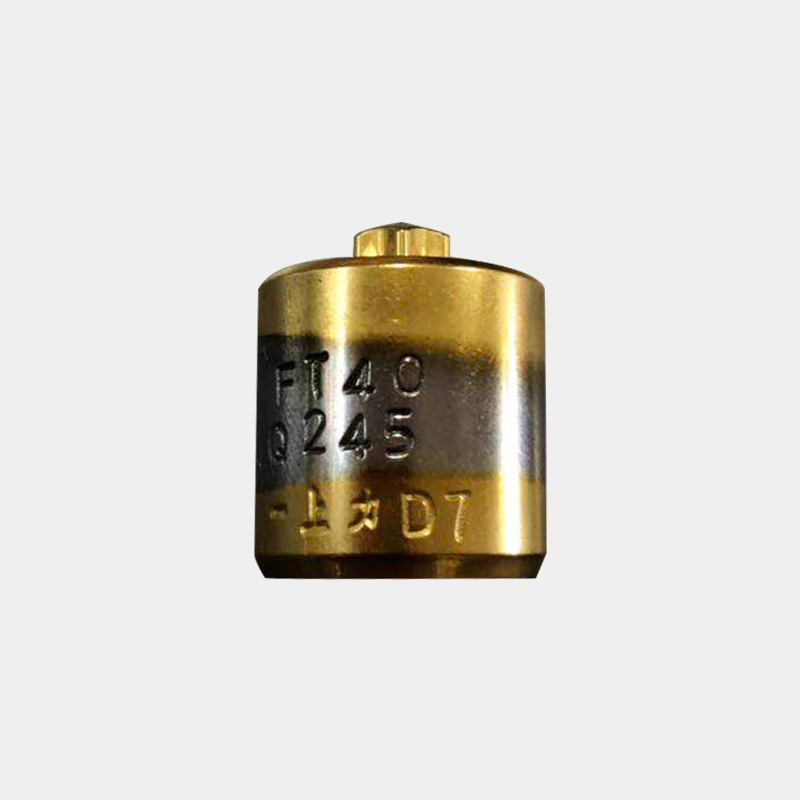

It is a precision-engineered tooling component used in header machines during the second blow operation. After the first punch shapes the screw head’s initial form, the second punch delivers the detailed contours, drives the thread socket, and finalizes the head shape with high accuracy. The quality of this tool directly determines the consistency, strength, and appearance of the screws.

This tool is typically manufactured from high-speed steel (HSS), tungsten carbide, or tool steel, materials known for their superior hardness and resistance to wear. The correct choice of material and precision machining ensures extended lifespan, reduced downtime, and high-speed performance.

Below is a detailed breakdown of the typical technical specifications of a standard Screw Second Punch:

Understanding these parameters allows manufacturers to make data-driven decisions about performance, production cost, and output stability. The Screw Second Punch is not merely a consumable tool—it is the core determinant of screw precision in mass production environments.

Why the Screw Second Punch Defines Quality and Production Efficiency

In screw production, consistency and repeatability are key performance indicators. The Screw Second Punch directly affects both. Here’s why this tool has become indispensable in modern fastener manufacturing:

a. Precision Forming of Screw Heads
Every screw type—whether it’s Phillips, Torx, or Hex—requires consistent geometric accuracy. A high-quality second punch ensures each head dimension matches design standards, minimizing rejection rates and ensuring perfect assembly fit.

b. Reduction of Production Downtime
Frequent tool changes lead to interruptions, reducing output efficiency. A well-crafted punch with premium coatings such as TiN or DLC significantly extends service life, cutting replacement frequency by up to 40%.

c. Material Performance and Heat Resistance
In cold-heading operations, punches endure extreme stress and friction. Materials like M42 high-speed steel and tungsten carbide maintain hardness even under high temperatures, resisting wear and deformation that cause dimensional inaccuracies.

d. Cost Efficiency and Sustainable Manufacturing
Investing in long-life second punches reduces total tooling costs and scrap rates. Moreover, modern coating technologies lower friction, which decreases energy consumption during production—a step toward eco-efficient manufacturing.

e. Future Trend: Smart Coating and Precision Surface Engineering
The next evolution of Screw Second Punch design lies in nano-coatings and adaptive wear monitoring. Surface coatings embedded with nano-composites or self-lubricating films can intelligently reduce wear under high-speed conditions. Combined with digital wear sensors, future punches could predict replacement cycles before failure occurs—reducing downtime and optimizing production flow.

Manufacturers increasingly seek suppliers who can deliver not only high-quality tooling but also technological collaboration. The future Screw Second Punch will be a fusion of metallurgy, coating science, and smart monitoring systems.

How to Choose the Right Screw Second Punch for Industrial Applications

Selecting the proper Screw Second Punch involves multiple factors—each influencing performance and production economics. Below are the key considerations when evaluating which punch to use:

1. Match Material to Production Volume

• Low to Medium Volume: HSS punches offer excellent cost efficiency.

• High Volume or High-Speed Production: Tungsten carbide or powder metallurgy steel provides superior durability.

2. Evaluate Coating Type

• TiN (Titanium Nitride): Best for general-purpose screws; reduces friction and improves wear resistance.

• TiCN (Titanium Carbonitride): Suitable for harder materials or stainless-steel screws.

• DLC (Diamond-Like Carbon): Ideal for ultra-high-speed operations, offering extreme hardness and reduced sticking.

3. Consider Screw Type and Geometry
Different screw heads require different punch tip profiles. For example, Phillips and Pozi require precise angular alignment, while Torx demands deeper and sharper grooves. A mismatch between punch geometry and screw design can lead to stripping, deformation, or rejection.

4. Tolerance and Finish Quality
The tighter the tolerance, the more consistent the screw head. High-grade second punches are ground to micron-level precision, ensuring minimal dimensional drift even after long production cycles.

5. Compatibility and Machine Fit
The punch must align perfectly with the header machine model. Minor misalignments cause punch breakage or screw head eccentricity. Always verify machine specifications before installation.

6. Supplier Reliability and After-Sales Support
Choose suppliers offering not only consistent tooling quality but also technical assistance and rapid customization. A responsive manufacturer helps troubleshoot forming issues, adjust designs, and extend tool longevity.

Common Questions About Screw Second Punch

Q1: What causes premature wear or breakage of a Screw Second Punch?
A: Common causes include improper material selection, incorrect heat treatment, excessive forming load, and poor lubrication. Using a punch with inadequate hardness or surface finish increases friction and micro-cracks, leading to early failure. Regular maintenance and optimized lubrication can extend tool life significantly.

Q2: How often should a Screw Second Punch be replaced?
A: The replacement cycle depends on the screw type, machine speed, and material hardness. Under normal conditions, high-quality punches last between 500,000 to 1,000,000 strokes. However, frequent inspection is crucial. Early detection of wear patterns prevents damage to screws and header dies, maintaining production quality.

The Future of Screw Second Punch Technology and Industry Outlook

The global fastener industry is moving toward automation, precision, and sustainability. Screw Second Punch technology will evolve to meet these demands. Advanced coatings, hybrid alloys, and precision grinding will further increase longevity, while digitalization will allow tool monitoring in real-time.

Manufacturers are also adopting AI-driven production systems that analyze wear data from punches to predict maintenance schedules—reducing waste and improving efficiency. Sustainable materials, recyclable coatings, and energy-efficient production will dominate the next generation of tooling solutions.

In this dynamic landscape, high-quality Screw Second Punch tools serve as the backbone of consistent, high-speed screw manufacturing. Investing in superior tooling enhances overall plant performance and reinforces the reliability of every finished product.

By combining advanced materials, modern coating technology, and rigorous quality control, Shangli has established itself as a trusted supplier of high-performance Screw Second Punches worldwide. Each punch is designed with meticulous attention to detail, ensuring compatibility, endurance, and perfect forming results for diverse screw head types.

For manufacturers seeking reliable, high-efficiency tooling solutions that meet international quality standards, Shangli provides not only products but also expert consultation and customized designs.

Contact us today to learn more about optimizing your production line with Shangli’s precision Screw Second Punch solutions and experience the next generation of fastener manufacturing performance.
