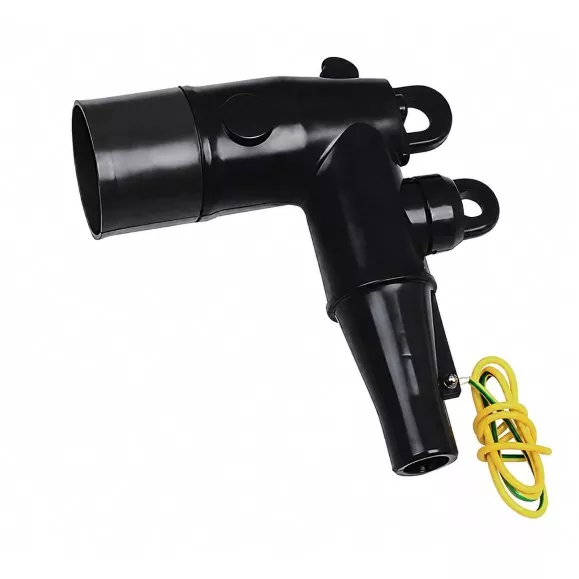

How to Install a 15kV 25kV 200A Loadbreak Elbow Connector Without Damaging the Semi-Conductive Shield
2026-08-27
Installing a medium-voltage separable connector demands precision, especially when working with a 15kV 25kV 200A Loadbreak Elbow Connector. The semi-conductive shield layer is not just protective—it actively controls electrical stress. Any nick, scratch, or improper cut can concentrate voltage gradients, leading to tracking, partial discharge, or premature failure. At Senguang, we have engineered our elbow connectors with molded EPDM insulation and a factory-bonded semi-conductive interface, but even the best hardware cannot compensate for flawed installation techniques. This guide walks through every critical step to preserve shield integrity while ensuring a reliable, test-passing termination.
Why the Semi-Conductive Shield Matters
The extruded semi-conductive layer on a 200A Loadbreak Elbow Connector serves two functions: it confines the electrical field within the insulation and provides a conductive path to ground when the connector is mated. Damage to this layer—even a 0.5 mm deep cut—creates an air gap that becomes a high-stress point. Over time, moisture ingress and electrical treeing will degrade the 15kV 25kV rating. Proper installation preserves the factory-designed stress relief, which is why Senguang emphasizes shield preparation in every training session.
Step-by-Step Installation Protocol
| Step | Action | Critical Check for Shield Protection |
|---|---|---|
| 1 | Cable stripping – remove outer jacket to manufacturer’s dimension | Use a non-rotary stripping tool; avoid score lines on the semicon |
| 2 | Semicon cutback – expose the required insulation length | Cut at 45° chamfer with a sharp blade; do not nick the XLPE insulation |
| 3 | Abrasive cleaning – remove carbon residues from the semicon edge | Use only approved abrasive pads; do not round the chamfer excessively |
| 4 | Apply silicone lubricant – coat the inside of the elbow housing | Keep lubricant off the semicon cone and contact interface |
| 5 | Insertion – push the elbow fully onto the bushing until the latch clicks | Verify the alignment mark; stop if resistance is uneven—forcing can delaminate the shield |
| 6 | Grounding – attach the drain wire to the equipment ground | Ensure the grounding eye is not twisted against the semicon layer |
Tool Selection for Shield Safety
| Tool Type | Recommended | Avoid |
|---|---|---|
| Cable stripper | Ratcheting, depth-controlled | Fixed-blade ring cutters |
| Semicon removal | Hook-blade or curved scraper | Straight utility knives |
| Abrasive | 220-grit silicon carbide pad | Emery cloth or metal files |
| Lubricant | Non-silicone, dielectric-approved | Petroleum-based greases |
Four Non-Negotiable Rules from Senguang
-
Never re-strip a cable – each cut changes the semicon geometry. Measure twice, cut once.
-
Inspect under magnification – a 10x loupe reveals micro-cracks that finger touch misses.
-
Test after installation – perform a DC hi-pot at 1.5× rated voltage for 15 minutes to verify shield integrity.
-
Document torque – the compression lug must be torqued to 35–40 N·m for copper and 30–35 N·m for aluminum; over-torque stresses the semicon interface.
FAQ – Common Questions About the 15kV 25kV 200A Loadbreak Elbow Connector
Q: What is the acceptable depth of a nick on the semi-conductive shield during stripping?
A: Any cut deeper than 0.010 inches (0.25 mm) into the semicon layer is rejectable. For a 15kV 25kV 200A Loadbreak Elbow Connector, the semicon thickness typically ranges from 0.030 to 0.045 inches. A 0.010‑inch nick reduces the creepage path and concentrates stress. If a nick exceeds this limit, you must cut back the cable and re-terminate. Senguang supplies a go/no‑go gauge with every connector kit to verify shield thickness before stripping—use it before starting each termination.
Q: Can I use an abrasive pad to remove the semicon layer completely?
A: No. The semicon layer must never be fully removed from the cable insulation—only the cutback portion (typically ¾ inch behind the lug crimp) is stripped. The remaining semicon must transition smoothly via a 45° chamfer. Abrasive pads are for cleaning carbon dust only, not for bulk removal. Using them aggressively will round the chamfer and destroy the stress-relief geometry. Senguang recommends a curved scraper for precise cutback, followed by a single light pass with 220‑grit pad to remove loose particles—never grind down to the insulation base.
Q: How do I verify that the elbow is fully seated without overstressing the shield?
A: Listen for the audible click of the internal latching mechanism and check the visual alignment mark on the elbow body against the bushing flange. The insertion force should be steady—if you exceed 50 lbf (222 N) without a click, stop and inspect for misalignment or excess lubricant. Forcing the 200A Loadbreak Elbow Connector can delaminate the semicon layer from the EPDM housing. Senguang elbows feature a dual‑indicator system: a white witness line and a tactile detent. After seating, gently tug the elbow—it should not slide back more than 1/16 inch.
Final Quality Check – Before Energizing
| Test | Acceptable Result | Action if Failed |
|---|---|---|
| Visual (10x) | No tool marks on semicon chamfer | Re-terminate |
| Continuity (shield to ground) | < 1 Ω | Check drain wire crimp |
| Hi‑pot AC (1 minute) | No breakdown at 21 kV (15kV) / 35 kV (25kV) | Replace elbow |
| Partial discharge | < 10 pC at rated voltage | Inspect cable prep |
